Re: gEDA-user: Solder Jumpers

["John Luciani" <jluciani@xxxxxxxxx>]

On Tue, Mar 25, 2008 at 7:28 PM, DJ Delorie <dj@xxxxxxxxxxx> wrote:
>

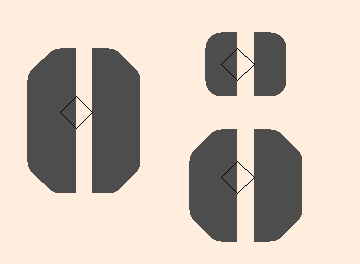

>  You can combine four rounded pads and a square one to form each half
>  of these:
>
>  http://www.delorie.com/pcb/jumpers.png
>
>  (the tiny one is one rounded + one square, for reference)

The footprint in the lower right looks quite good.

Thanks.

(* jcl *)

--
http://www.luciani.org
