Re: gEDA-user: powermeter board, with less ground planes :-)

[Steve Meier <smeier@xxxxxxxxxxxxxxxxxxx>]

It isn't your clock that is pulling all that power is it?

Steve M.

On Fri, 2008-10-31 at 22:45 -0400, DJ Delorie wrote:
> > At the end of the day the only thing that counts is whether it's
> > good enough and it looks like DJ's board should perform pretty well
> > now.
>
> And yet I keep improving it anyway.
>

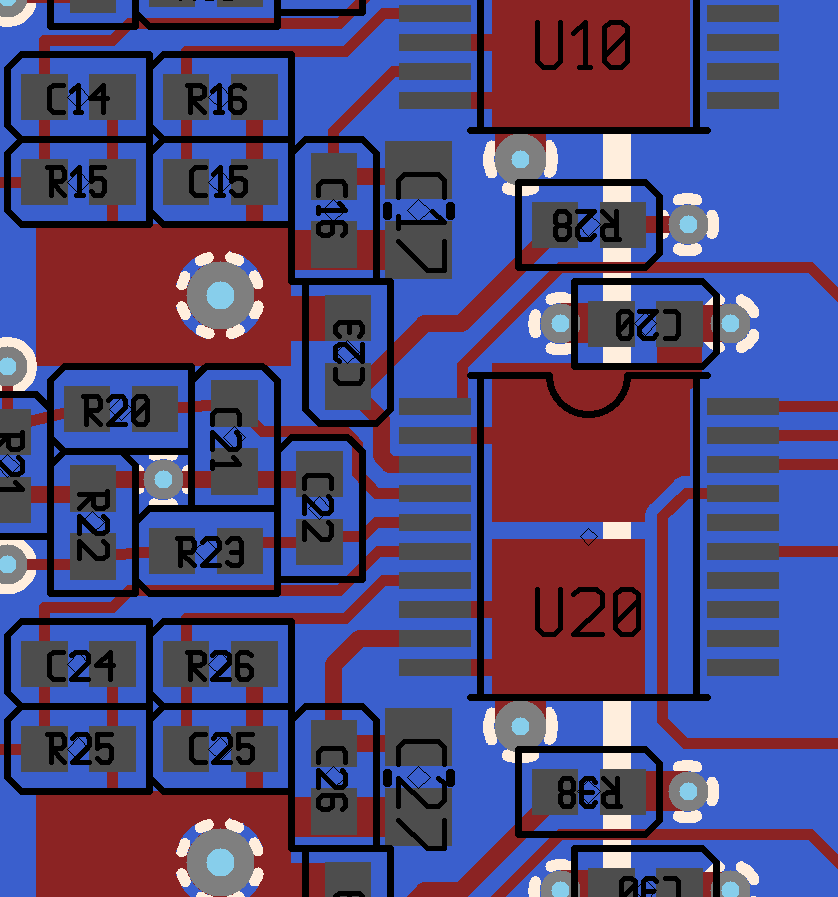

> http://www.delorie.com/electronics/powermeter/bypass-2.png
>
> The red ground planes on the left side perhaps aren't needed, but they
> make it easy to connect all those parts, and every bit of unetched
> copper saves the environment! ;-)
>
>
