Re: gEDA-user: PCB Bug: poly clearance around rotated pads.

[Dave N6NZ <n6nz@xxxxxxxx>]

DJ Delorie wrote:
> Reproduced, still broken.

OK, thanks for checking.

>

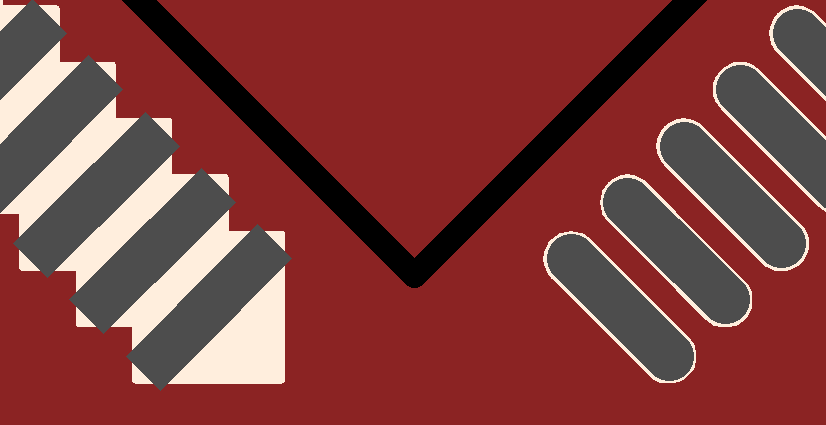

> FYI it works properly with rounded-end rotated pads, just not
> square-end rotated pads.
>
> http://www.delorie.com/pcb/rotated-clears.png

Clearance on rounded pads is much prettier, isn't it?  I should probably
switch my library over.  The reason I'm using square pads is because of
the lame path I am using to turn postscript check plots into dxf files
for my home-made laser cut paste stencils.  ps2edit can't handle the
rounded pads.

-dave

>
