Thanks again. I was looking at the wrong place. Now that the board has passed the DRC checks I
printed a top image and placed the components. Anyone have any idea how to solder the 20 mil
leadless chips????
George

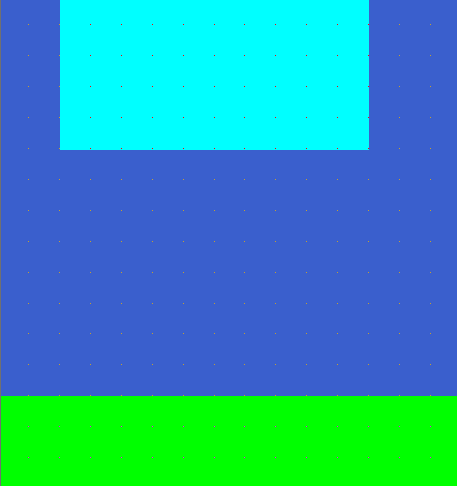

On Mon, 2006-06-05 at 12:38 -0400, DJ Delorie wrote:> DJ, When I do that it measures 10 mils. Both by the Ctrl-M and > setting the grid to 1 mil and counting. Does your board look like this? http://www.delorie.com/tmp/ggallant.gif I count 8 mils between the light blue and the green.
--
--------------------------------------------------
